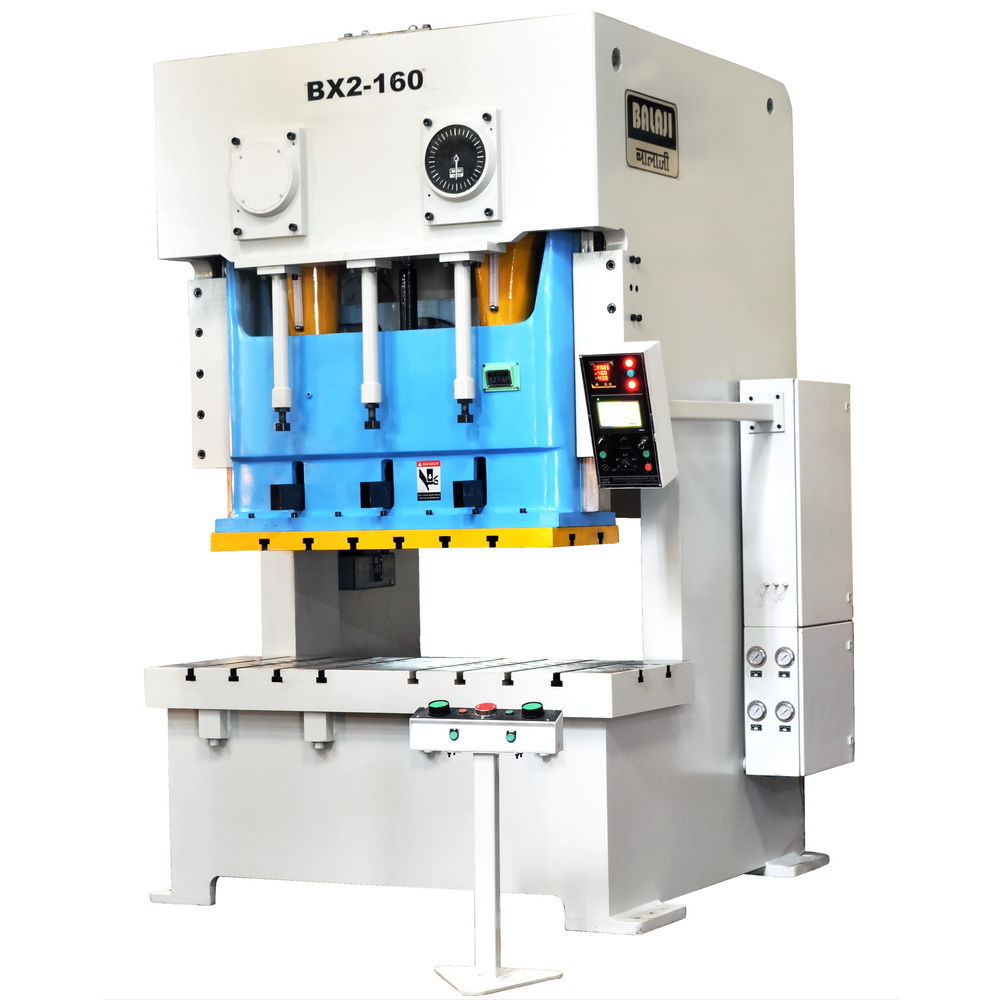

Gap Frame Double Crank Power Press (BX2-Series)
Overview
We have been affianced in providing Gap Frame Press in various models and technical specifications. Suitable for pressing small components and metal sheet. The offered press is manufactured by our veteran professionals using optimum quality components and pioneering technology. Widely used in different industries for forging and molding applications, this Gap Frame Press such as Frame Power Press,Gap Frame Power Press,2 Point Gap Frame Press, Gap Frame Press Machine, etc is widely appreciated among our clients and can be purchased at the most reasonable prices.
Features
High rigid design minimize deflection and most suitable for progressive and generaldie application. |
Opposed rotation crank to minimize side thrust force results best suitable for off center load |
A heavy duty dynamically balanced single disk combined clutch and brake. |
Monitored forced automatic grease lubrication system. |
User friendly simple and easy operation electrical and pneumatic controls. |
Accessories
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
---|---|
Main Motor | Pneumatic Die Cushion |
Press Control System (BPC – 3.1) | Photo Electrical Safety Device |
Touch Screen Panel Display with Error Message | Anti Vibration Mount |
Digital Crank Angle Indicator | Foot Switch |
Automatic Grease Lubrication Device | Knockout Device |
Hydraulic Overload Protector | Quick Die Change System |
Motorized Slide Adjustment | Variable Speed Drive |
Shut Height Indicator | Coil And Strip Feeder |
Production Counter | |
Dual Solenoid Valve | |
Programmable Cam Switch | |
Counter Balance for Slide | |
Portable Operation Stand |
