Gap Frame Single Crank Power Press (BX1-Series)

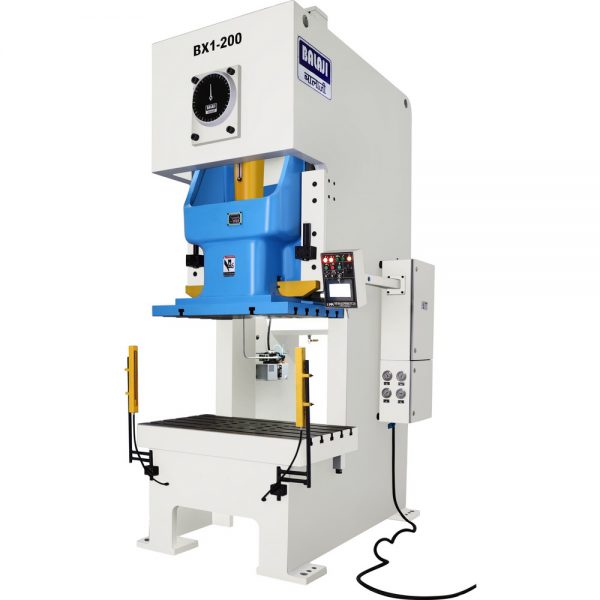

C Frame Single Crank Power Press (BX1 Series)
This is Most used press used for blanking, punching, bending and forming process. Wide area of Slide and bolster, High Precision press ensure long tool life. Coil feeder, linear transfers can be added.
Overview
C Frame Single Crank Power Press (BX1 Series)
his is Most used press used for blanking, punching, bending and forming process. Wide area of Slide and bolster, High Precision press ensure long tool life. Coil feeder, linear transfers can be added.
Features
- Highly rigid frame fabricated by extra thick steel ensure high precision press work.
- 6 point extra long slide guide runes in bronze liner.
- Forced automatic Grease lubrication system with fault monitor.
- Touch Screen panel with error message.
- Heavy duty high torque, low noise clutch and brake.
Accessories
| STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
|---|---|
| Main Motor | Pneumatic Die Cushion |
| Plc Controlled System (bpc-2.1) | Photo Electrical Safety Device |
| Automatic Grease Lubrication Device | Anti Vibration Mount |
| Hydraulic Overload Protector | Foot Switch |
| Motorized Slide Adjustment (bx1-63 – 250) | Knockout Device |
| Manual Slide Adjustment (bx1-32 – 40). | Quick Die Change System |
| Shut Height Indicator (bx1-63 – 250) | Variable Speed Drive |
| Production Counter | Coil And Strip Feeder |
| Dual Solenoid Valve | Press Control System (bpc-3.1) |
| Rotary Cam Limit Switch | Touch Screen Panel Display With Error Message |
| Counter Balance For Slide | Digital Crank Angle Indicator |
| Portable Operation Stand |

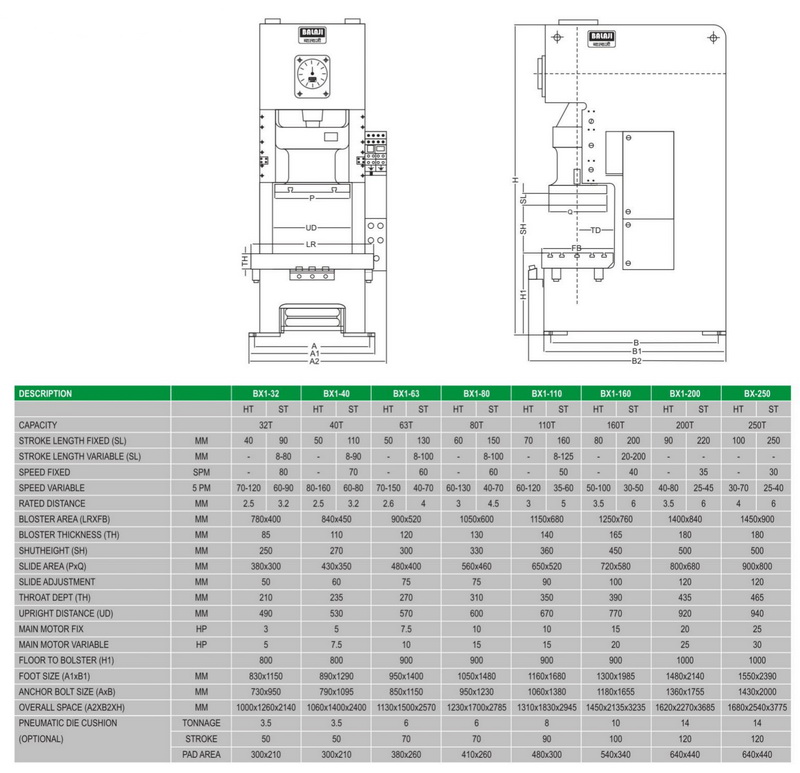

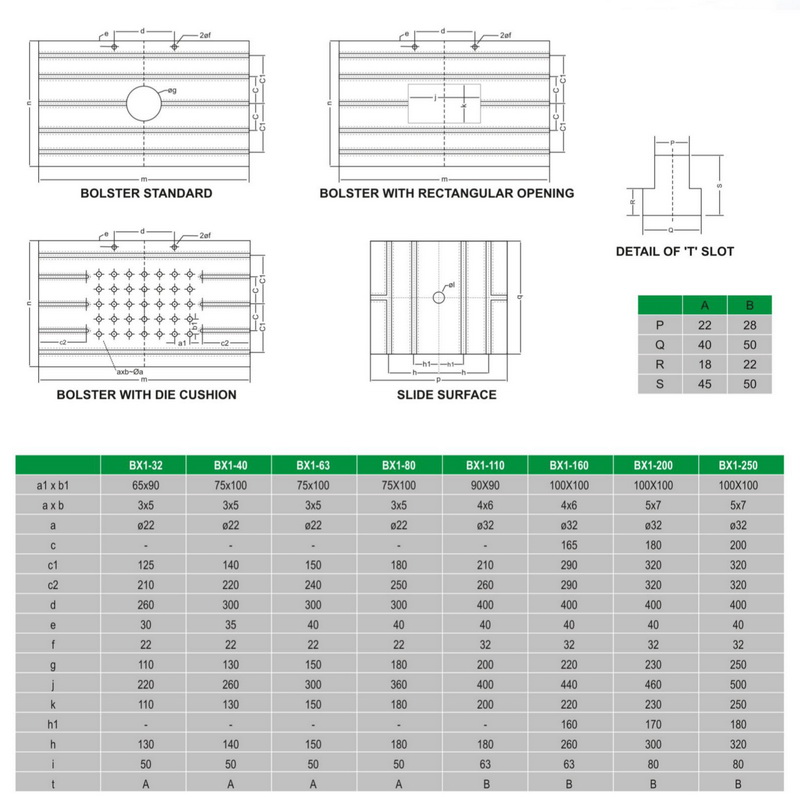

Specification
