A qualitative range of Cross Shaft Power Press is manufactured, exported and supplied by us. The provided press is manufactured using optimum quality components and advanced technology by our diligent professionals. This press is widely in demand in various industries. Our clients can avail this Cross Shaft Power Press from us at the most industry leading prices within the estimated time span.

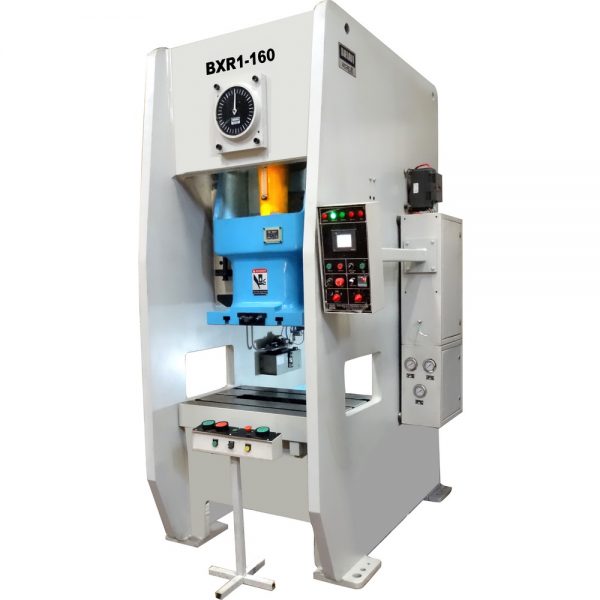

Ring Frame Single Crank Power Press (BXR1-Series)
Overview
A qualitative range of Cross Shaft Power Press is manufactured, exported and supplied by us. The provided press is manufactured using optimum quality components and advanced technology by our diligent professionals. This press is widely in demand in various industries. Our clients can avail this Cross Shaft Power Press from us at the most industry leading prices within the estimated time span.
Features
| High rigid symmetrical structure design most suitable for progressive and generaldie application. |
| Opposed rotation crank to minimize side thrust force results best suitable for off center load |
| A heavy duty dynamically balanced single disk combined clutch and break. |
| Monitored forced automatic grease lubrication system |
| User friendly simple and easy operation electrical and pneumatic controls. |
Accessories
| STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
|---|---|
| Main Motor | Pneumatic Die Cushion |
| Press Control System (BPC-3.1) | Photo Electrical Safety Device |
| Touch Screen Panel Display With Error Message | Anti Vibration Mount |
| Digital Crank Angle Indicator | Foot Switch |
| Automatic Grease Lubrication Device | Knockout Device |
| Hydraulic Overload Protector | Quick Die Change System |
| Motorized Slide Adjustment | Variable Speed Drive |
| Shut Height Indicator | Coil And Strip Feeder |
| Production Counter | |
| Dual Solenoid Valve | |
| Programmable cam switch | |
| Counter Balance For Slide | |
| Portable Operation Stand |

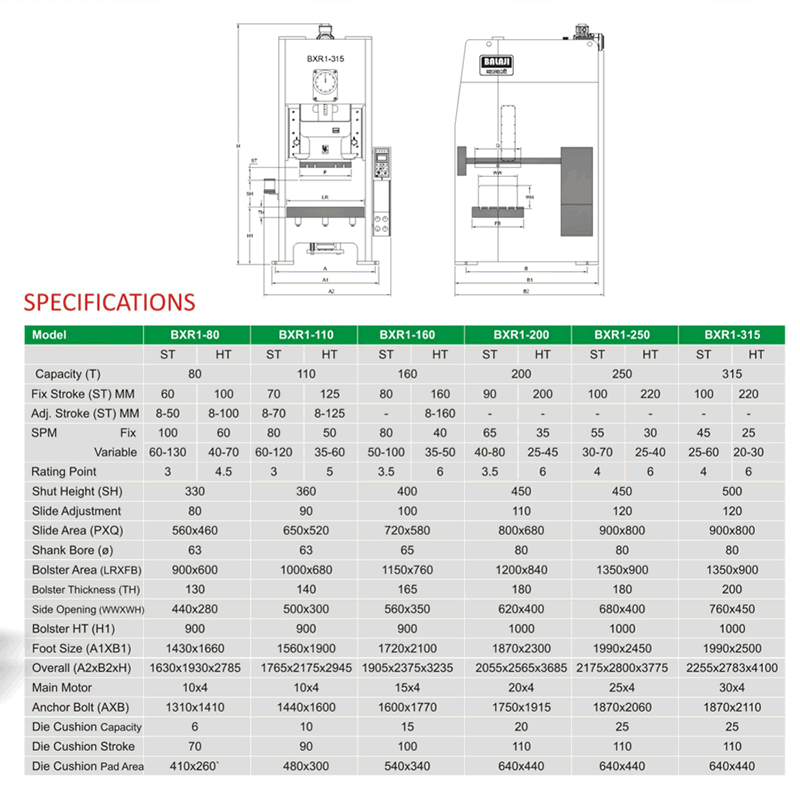

Specification
